Kapton Tape Polyamide 260°C High Temp 1/4″ (6mm) x 36yds

$10.00

CyberDoc Kapton Tape Polyamide High Temp 1/4″ (6mm) x 36yds



  • One roll of 1/4″ x 36 yard tape.
  • High temperature tape will not burn or wrinkle
  • 1 mil polyimide film & 1.5 mil silicone adhesive
  • Clean removal, no residue
  • Residues are non-corrosive

Temperature Range    -100 ~ 500°F (-73 ~ 260°C)

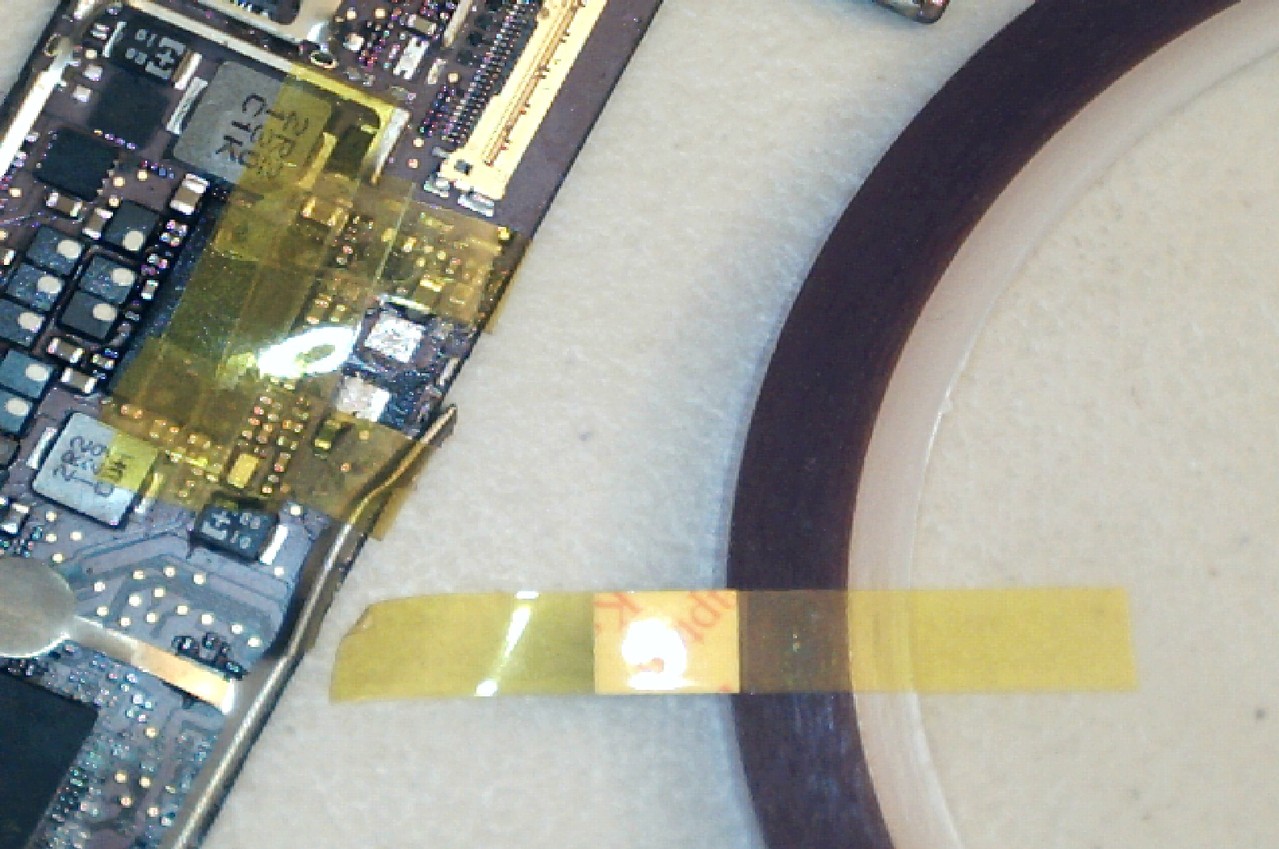

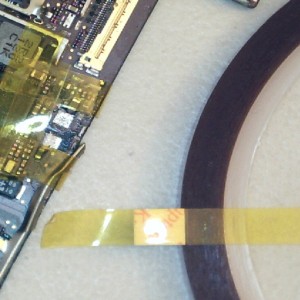

High temperature tape is widey used for masking during powder coating, wave soldering, circuit board production, or holding parts in place during hot air rework or repair of electronic components.Due to it’s semi-transparent shiny gold color is also has a myriad of hobby and craft uses.

Commonly used in electronics repair, it is the ideal choice for QFP or BGA rework operations. It is also well suited for use with through-hole repair operations.



Adhesive Silicone Thermosetting
Backing, Carrier Kapton® Polyimide
Thickness 0.0027″ (2.7 mils, 0.069mm)
Thickness – Adhesive 0.0017″ (1.7 mils, 0.043mm)
Thickness – Backing, Carrier, Liner 0.0010″ (1.0 mils, 0.025mm)
Width 0.25″ (6.50mm) 1/4″
Length 108′ (32.9m) 36 yds
Color Amber
Usage Masking, High Temperature
Temperature Range -100 ~ 500°F (-73 ~ 260°C)
SKU: Kapton Tape Polyamide 260°C High Temp 1/4" (6mm) x 36yds Category:

Description

844854686848+ 9654+54

Additional information

Weight 1 oz
