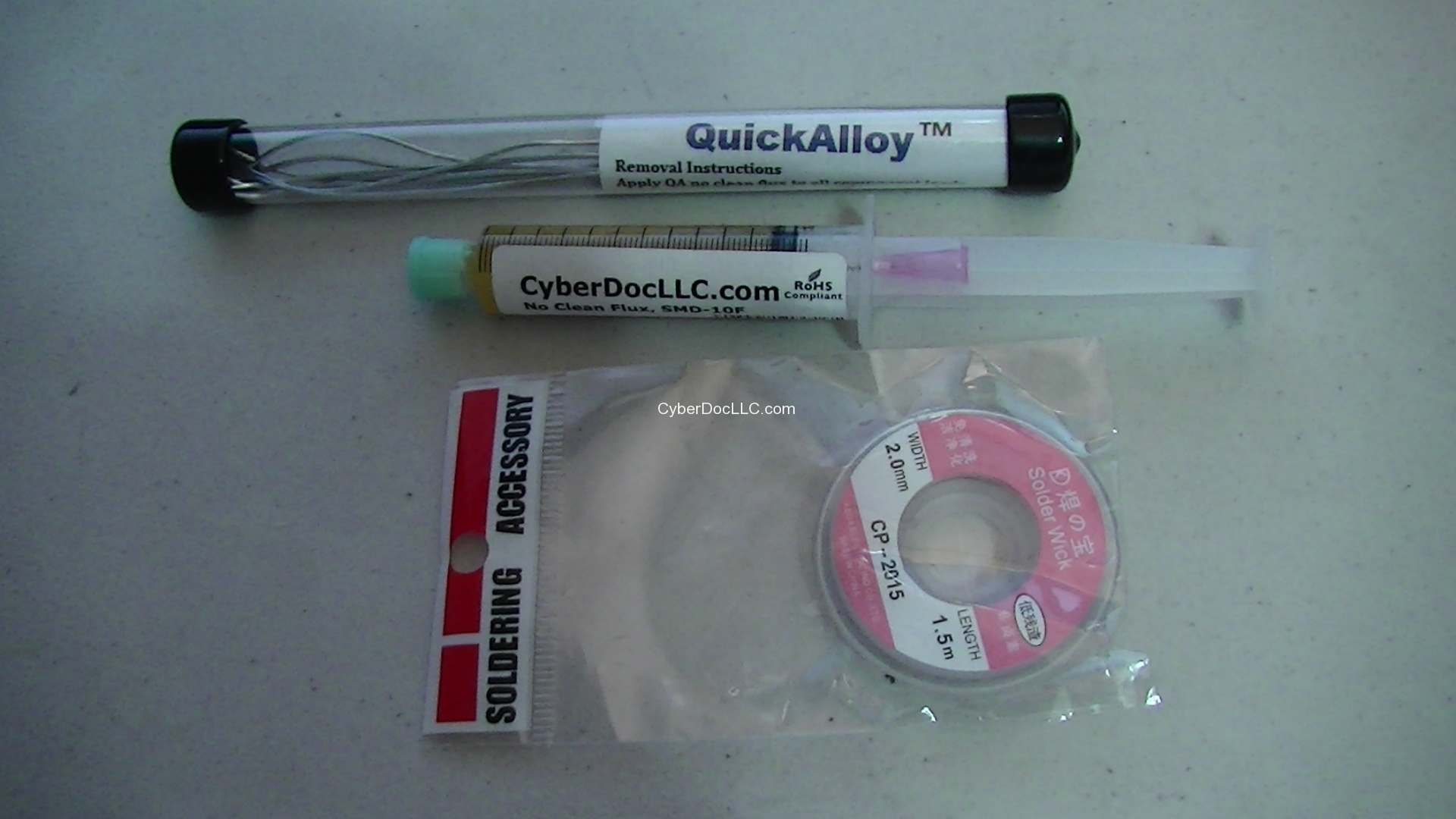

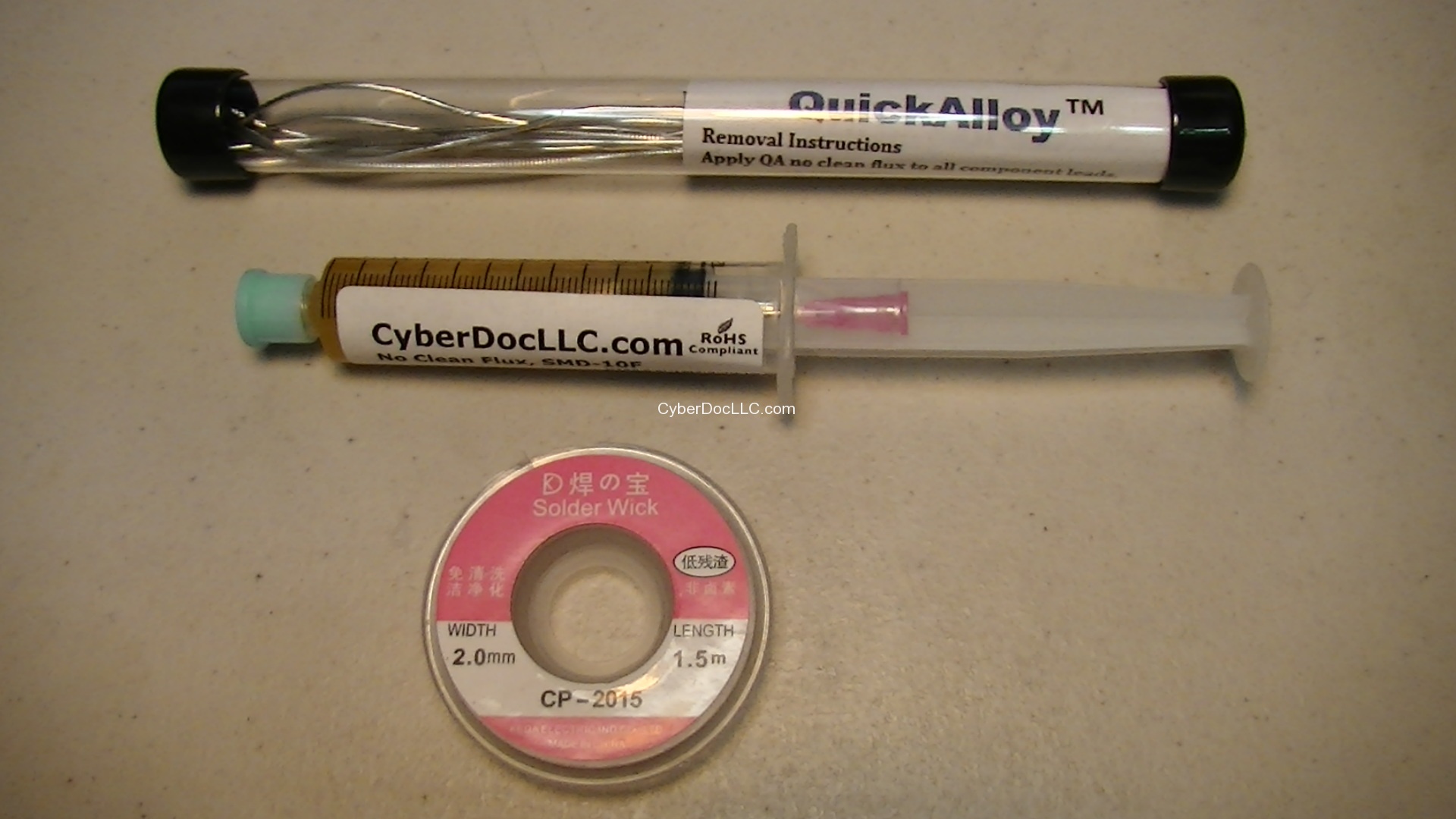

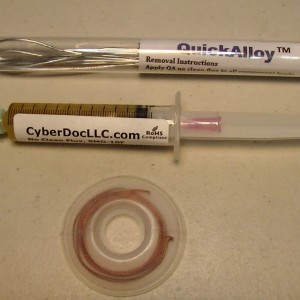

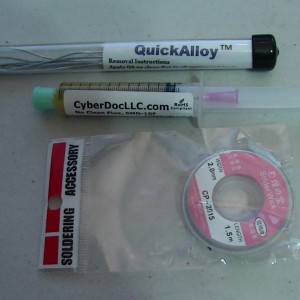

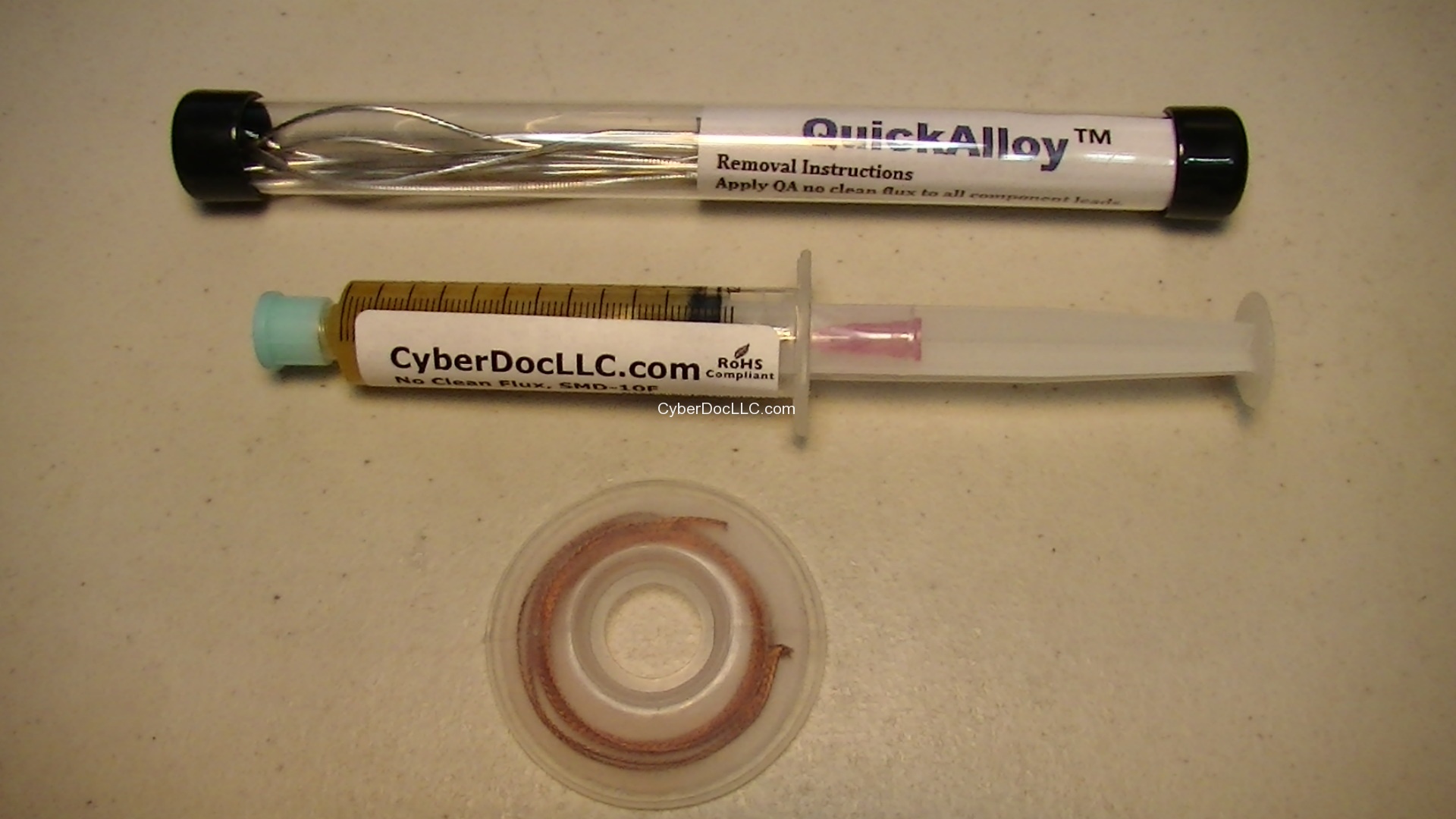

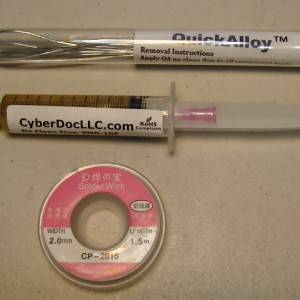

Solder wick QuickAlloy SMD Chip Desolder Removal kit, included 5 Alloy Low melting Temperature , and 10 cc ml SMD Gel Flux

$20.00 $16.00





SKU: Solder wick QuickAlloy SMD Chip Desolder Removal kit, included 5 Alloy Low melting Temperature , and 10 cc ml SMD Gel Flux Categories: , , , , ,

Description

  • With this alloy it allow you will only need a soldering iron to accomplish surface mount repair easily which normally require heat gun, IR rework station and years of soldering experience.You are buying  5X 6.5inch QuickAlloy Desoldering Alloy  2.8ft 33 inchand10 cc no clean Fluxand1 X 1500 cm  premium fine solder copper wickSave Surface mount Rework Costs with CyberDoc SMD QuickAlloy Desoldering Alloy  Save Surface mount Rework Costs with

    CyberDoc SMD QuickAlloy Desoldering Alloy

        The concept is simple since normal lead based solder on the board have a melting temperature at 240 C Desoldering Alloy have a much lower melting temperature of ~50 C, therefore by  mixing (dilute) the two alloys together you get a melting temperature  some where in between and closer to 50 C. which allow you time to  desolder complex surface mount component like FPC connector or socket  connector off the board safely and effortlessly.   Regular lead based solder joint mixing with

    QuickAlloy SMT1-L = easy and safe surface mount board repair.

        By reduce the rework soldering temperature This special alloy will significantly reduced you solder rework soldering temperature. Prevent heat related damaged to the copper pads on board. Protect potentially heat damage to neighboring components or small chips.

    Instructions (with soldering iron or heat gun)

    • Apply flux to all leads.
    • Melt QuickAlloy SMT1-L uniformly on all pins (you need the temperature to be high enough to actually melt the original leads at least once in order  to get the desired result as described).
    • Maintain alloy in molten state long enough to release chip (or FPC connector).
    • Lift chip from board with a pick or tweezers.
    • You can use this to change iPod, iPhone, iPad, dock connector, FPC  connector, coil, resistor, wifi holder, battery connector (this is what  we use in our repairs)

    CLEAN UP

    • While molten,  use cotton swab and flux to move excess to an unused section of board  (Usually the middle of where the component was).
    • While applying heat, polish each pad with a swab and flux until thoroughly clean.
    • At room temperature clean residue with alcohol.
    • You are now ready to install the new chip.
    This alloy is recyclable and reusable for many repairs, simply heat it up  with the soldering iron and you can reuse the alloy lump in your next  repair job.         This  product contains lead
